SIZE 25 SERIES TRDA-2A INCREMENTAL SHAFT ENCODER
Specification Drawings Ordering Information Optional Parts[PDF] Detailed Information[PDF]
US $930.00
S.R.P. List Price

Spindle Encoder for CNC Machine Tools

Interchangeable with FANUC, SUMTAK, Kuroda and Tamagawa

FANUC# A86L-0027-001#002 (=Kuroda)
Tamagawa # TS 1508N91
SUMTAK # LF102.4BMC05P, #LF102.4BMS116, #LFC-002-1024

FEATURES:

  • 2.5" (63mm) O.D. Heavy-duty designed. NEMA4/IP65
  • 0.6" (15mm) Shaft, Shaft Seal Std.
  • 1024 P/R Only, Square Flange & Round Flange.
  • Cost-effective, easy to switch for system intergrators
  • For Cincinnati Machine, Mazak, Yaskawa, Hitachi (Mori)
    Seiki, Vickers, etc.

*Since Oct.1, 2022, Koyo has been changed the Brand to JTEKT.
Now, JTEKT Electronics Corp.

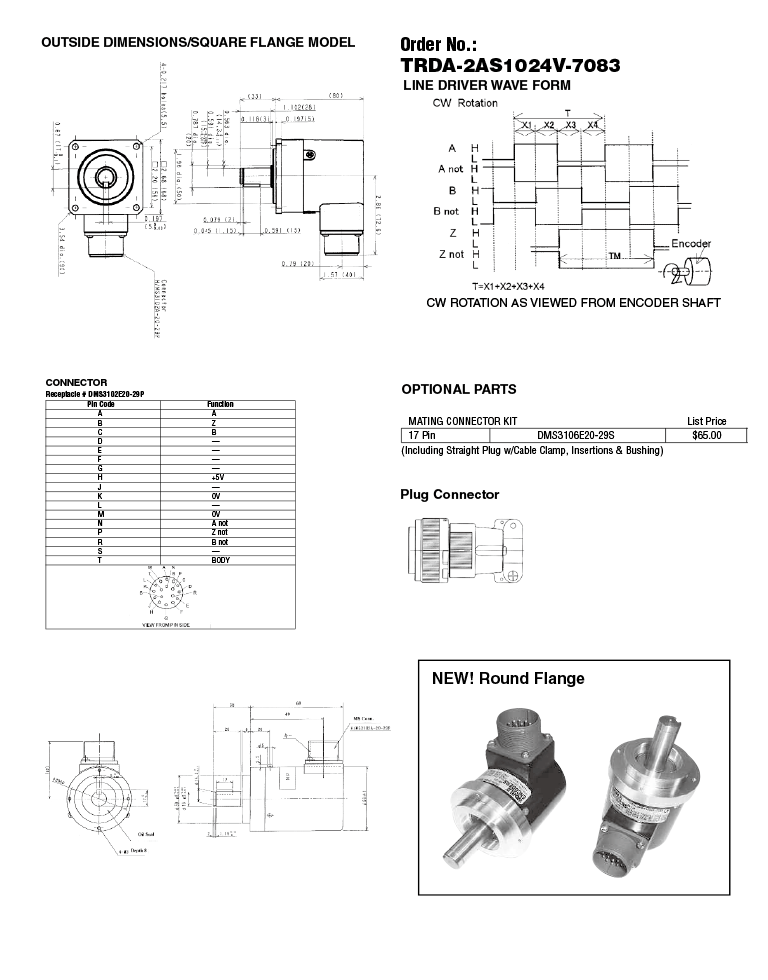

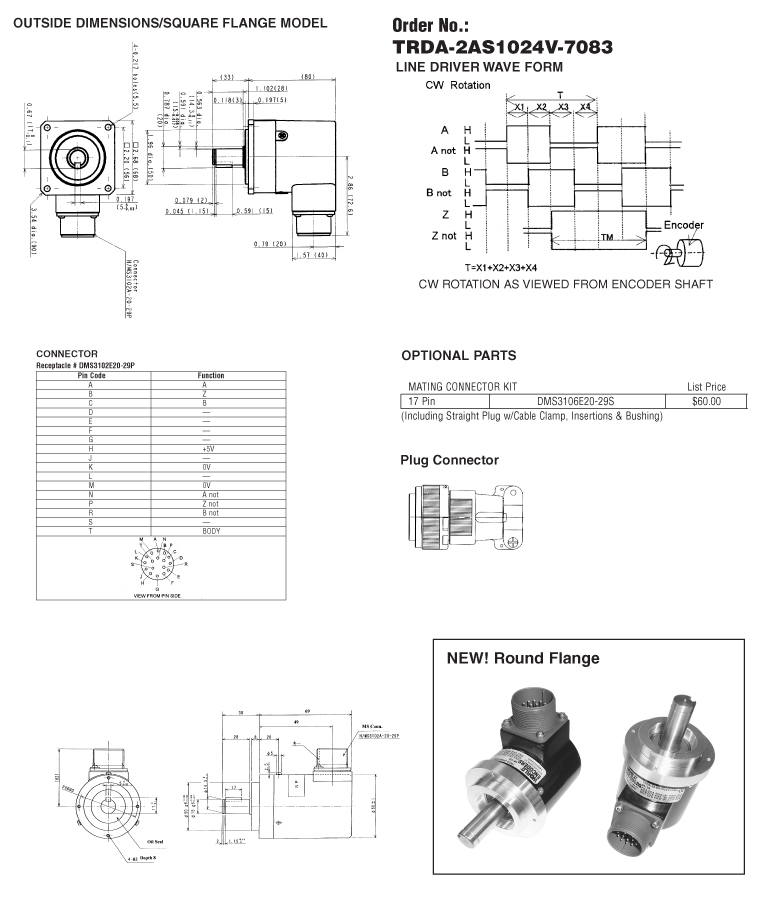

 Drawings
