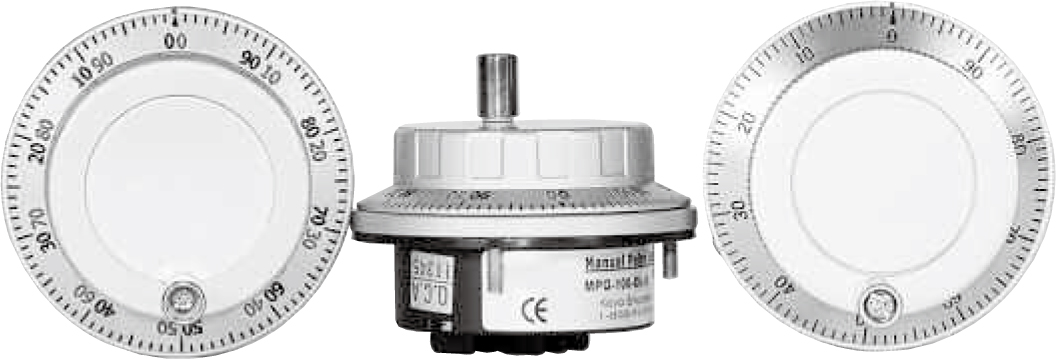

Series MPG/SIZE 30 (80mm Dial) HAND WHEEL
Specification Drawings Ordering Information Detailed Information[PDF]
US $280.00 (Sgl. Dial)
S.R.P. List Price

US $320.00 (Dbl. Dial)
S.R.P. List Price


brand

For CNC Panels
Interchangeable with

  • Euchner
  • Nemicon
  • Sumtak
  • Fanuc


FEATURES

  • Std. Interchangeable Designed
  • Quadrature Dual Channels
  • Linedriver 5v and Voltage 8 ~ 26vdc Outputs
 Specification

Electrical
Output
Line Driver
Voltage Output-TTL (NPN)
Pulse per Revolution
100 PPR
Supply Voltage
5v ± 0.25v dc
8 -26v dc
Output Voltage (VH)
 > 2.5 v Vcc -1.0 v
Output Voltage (VL)
 < 0.5 v < 0.5 v
Current Requirements
< 60mA (No loading)
Sink Current
< 20mA
Output Capacity
 Sync.Current : 20 mA, Residual Voltage : <0.5 v
Phase Difference
 Quadrature Square Wave A & B : 90°± 45° (T/4±T/8)
Rise/Fall Time
 < 2µs
Frequency Response
 0-10 kHz
Insulation Resistance
 20 MΩ At 500v dc Megger (Circuit-Body)

Mechanical
Dial Rotating Speed
 600 r/min.- Max., 200 r/min.-Normal (Continuous)
Starting Torque
 8.34 ozf-in (600 gf-cm) at 25C°
Rotational Life
 10 x 6 bits turns at < 200 rpm
Weight
 8.2 oz. (270 g)

Environmental
Operating Temperature
 0 to 60 C°
Humidity
 RH 35% to 90% no condensation
Storage Temperature
 0 to 80 C°
Vibration
 10-50 Hz/ 1.5mm X, Y, Z- 2 hrs.each
Shock
 50 G per 11 ms
Enclosure
 IP-54 / NEMA 12
