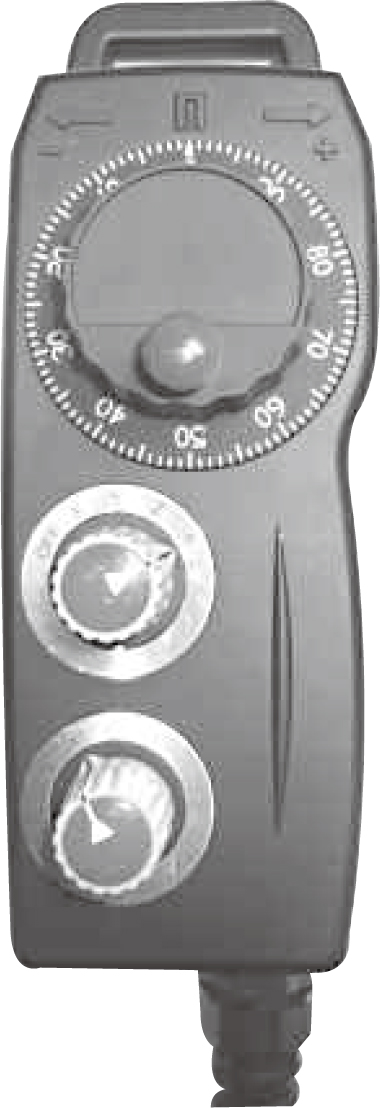

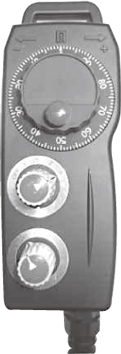

Series EHDW/Pendant Hand-held For FANUC CNC
Specification Drawings Ordering Information Detailed Information[PDF]


US $830.00
S.R.P.
List Price














brand

FEATURES

  • CNC Controls of Fanuc, Mitsubishi, All others
  • Multiplier x1, x10, x100 and axis selector SW's
  • 5v TTL outputs (Point to point)
  • IP 65, NAMA 4 enclosure protection
  • Std. 10 ft. extended spiral cable
  • Amp CPC plug kit Size 17 or size 23 connector kit available as options
  • John Ford replacement - 4,5 axis SW with Enable SW available.
  • Centroid Part # 10808, 5v TTL with 5 axis, CNC10
    System, CPU10 MPG's CNC Control for Mills
  • Centroid Part # 11069, 5v TTL with 3 axis, CNC11
    System & Vice-versa, MPU11 MPG's CNC Control for
    Lathes
  • Circular Plastic Size 17 & Amphenol Alloy Size 24 Connector Kits

 Specification

Electrical
Outputs TTL Voltage Output for FANUC
Pulse per Revolution 100 PPR
Supply Voltage 5 v±0.25 v dc
Output Voltage (VH) >4.0 v
Output Voltage (VL) < 0.5 v
Current Requirement <60 mA (No Loading)
Sink Current <20 mA
Output Capacity Sync. Current: 20 mA, Residual Voltage: <0.5 v
Phase Difference Quadrature Square Wave A & B: 90°±45° (T/4±T/8)
Rise/Fall Time <2 μs
Frequency Response 0-10 kHz
Insulation Resistance 20 MΩ At 500 v dc Megger (Circuit-Body)
Spiral Cable 10 ft. extended, 21/17 pol., 22-24 AWG

Mechanical
Dial Rotating Speed 500 r/min.-Max., 200 r/min.-Normal (Continuous)
Starting Torque 8.34 ozf-in (600 gf-cm) at 25°C
Rotational Life 10x 6 bits turns at < 200 rpm
Weight 3 lbs (1.5 kg)

Environmental
Operating Temperature 0 to 60 °C
Humidity RH 35% to 90% no condensation
Storage Temperature 0 to 80 °C
Vibration 10-50 Hz/ 1.5mm X, Y, Z- 2 hrs.each
Shock 50 G per 11 ms
Enclosure IP65 / NEMA 4

Rotary Switch
Max. Voltage 30 v dc
Current / Switch Life 50 mA / >25,000 cycles
