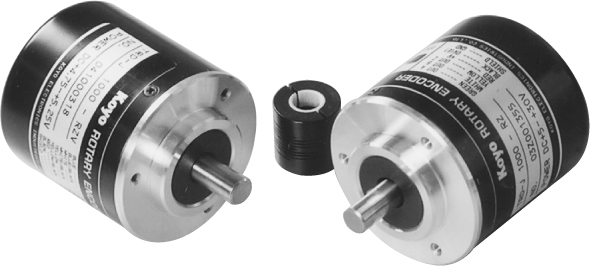

METRIC OEM SERIES TRD-J Discontinued INCREMENTAL SHAFT ENCODER * TRD-N Intercjamgeable
Specification Drawings Ordering Information Optional Parts[PDF] Detailed Information[PDF]





Linedriver, 1024 P/R
S.R.P.
US $265.00

FEATURES
  • 2.0" (50mm) O.D.m Medium-duty designed, NEMA 12/IP54
  • .315"(8mm) Solid Shaft, Standard Shaft Protection Scraper
  • Up to 1024 P/R
  • Strong in vibration and shock using all Metal disks.
  • 5-30Vdc TTL and 5Vdc Line Driver Output.
  • Competitive Low Prices!

*Since Oct.1, 2022, Koyo has been changed the Brand to JTEKT.
Now, JTEKT Electronics Corp.

Specifications

Electrical
Pulse per Revolution Up to 1024 P/R
Supply Voltage 5~30Vdc TTL & 5Vdc Line Driver
Output Format Dual Square Wave in Quadrature with Index
Output Option TTL Output, Line Driver
Current Requirement TTL: 60mA Max. No Load
Line Driver: 130mA Max. No Load
Frequency Response 200 KHz
Duty Ratio 50±25%
Phase Shift 25±12.5%
Index Signal Width 100±50%
Output Level (H) >2.5V (L) <0.5V
Rise and Fall Time <1Ás (When cable length is 1m)
Insulation Resistance >50M

Mechanical
Shaft Diameter 8 mm (0.315")
Shaft Loading Axial: 60N (14 lbs)
Radial: 100N (23 lbs)
Shaft Scraper Standard (Detachable, Repairable)
Starting Torque 1.4 oz. in (0.003N•m) at 20°C
Shaft Angular Acceleration 1000 rad/Sec2
Moment of Inertia 2.0x103Kg • m2
Mech. Perm. Speed 6000 rpm Max.
Weight 0.5 lb

Environmental
Temperature Operating: -10 ~ +70°C
Storage: -25 ~ +85°C
Operation Humidity 35 ~ 85% without condensation
Vibration Durable for one hour along 3 axes at 10 to 55 Hz 0.75mm amplitude
Shock 981 m/s2 (11ms 3 times, each X, Y, Z)
Withstand Voltage 500VAC
Construction NEMA 12/IP-54

 Division Accuracy
Symmetry (A, B) X1+X2=0.5T±0.25T  X2+X3=0.5T±0.25T
Phase shift Xn=0.25T±0.125T (n=1, 2, 3, 4)
Signal width of Z ch. TM=1T±0.25T
T=360°/N
N:Pulse per revolution

 Division Accuracy of Signal
Pitch Error ±0.01T
Adjacent Pitch Error ±0.02T
