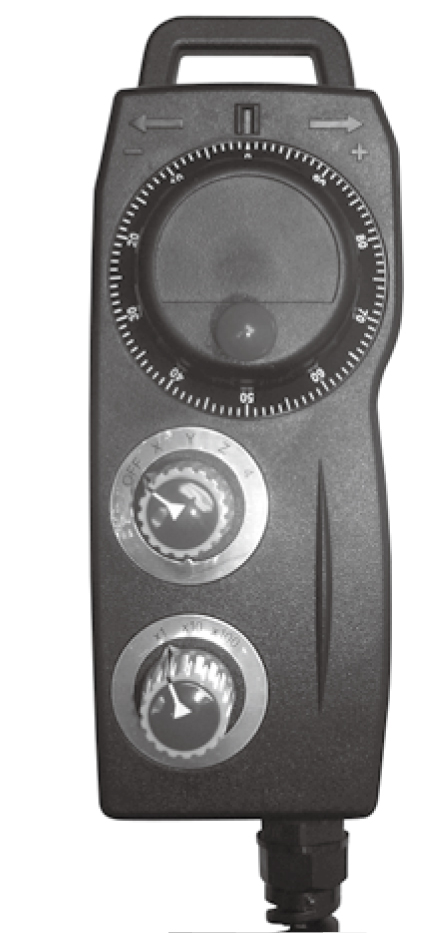

Series PHD/Pendant Hand-held For CNC Panels/4 Axis/Without E-Stop
Specification Drawings Ordering Information Detailed Information[PDF]


US $730.00
S.R.P.
List Price














brand

FEATURES

  • Hand-held Pulse Generator for "manual" axis jog
  • Differential Line Driver Output & FUNUC 5v TTL Output
  • X, Y Z Selector switch with OFF position plus 4 axis
  • "Handy" and "Light Weight" and "Very Thin"
  • Standard 10 ft. extended spiral cable
  • Rear Magnets

FANUC CNC Models Available
#EPG-B-A-4-S      $660 S.R.P
 Specification

Electrical
Outputs
Line Driver
TTL voltage output for FANUC
Pulse per Revolution
 100 PPR
Supply Voltage
5v ± 0.25v dc
5v ± 0.25v dc
Output Voltage (VH)
> 2.5 v > 4.0 v
Output Voltage (VL)
< 0.5 v < 0.5 v
Current Requirement
 < 60 mA (No loading)
Sink Current
 < 20 mA
Output Capacity Sync.Current : 20 mA, Residual Voltage : <0.5 v
Phase Difference Quadrature Square Wave A & B : 90°± 45°(T/4 ±T/8)
Rise/Fall time
 < 2µs
Frequency Response
 0-10 kHz
Insulation Resistance
20 MΩ At 500 v dc Megger (Circuit-Body)
Spiral Cable
 10 ft. extended, 21/17 pol., 22-24 AWG

Mechanical
Dial Rotating Speed 500 r/min.- Max., 200 r/min.-Normal (Continuous)
Starting Torque
 8.34 ozf-in (600 gf-cm) at 25°C
Rotational Life
 10 x 6 bits turns at ≦ 200 rpm
Weight
 2.2 lbs. (1 kg.)

Environmental
Operating Temperature
 0 to 60 °C
Humidity
RH 35% to 90% no condensation
Storage Temperature
 0 to 80 °C
Vibration
 10-50 Hz/ 1.5mm X, Y, Z- 2 hrs.each
Shock 50 G per 11 ms
Enclosure IP64 / NEMA 4

Rotary Switch
Max. Voltage 28 v dc
Current 10 mA
Operating Torque 0.005-0.02 Nm
