SIZE 20 SERIES TRDA-20N INCREMENTAL SHAFT ENCODER
Specification Drawings Ordering Information Detailed Information[PDF]

Nicely equipped MS
Connector Model (Left)
US $420.00
(up to 1024ppr)


FEATURES
  • 2.0" O.D., heavy duty designed
  • 3/8" shaft, shaft seal option (Detachable and Repairable)
  • 250 KHz frequency response
  • Detachable Square and Servo flanges configuration
  • Super Linedriver OL7272 Compatible 5-30 Vdc available

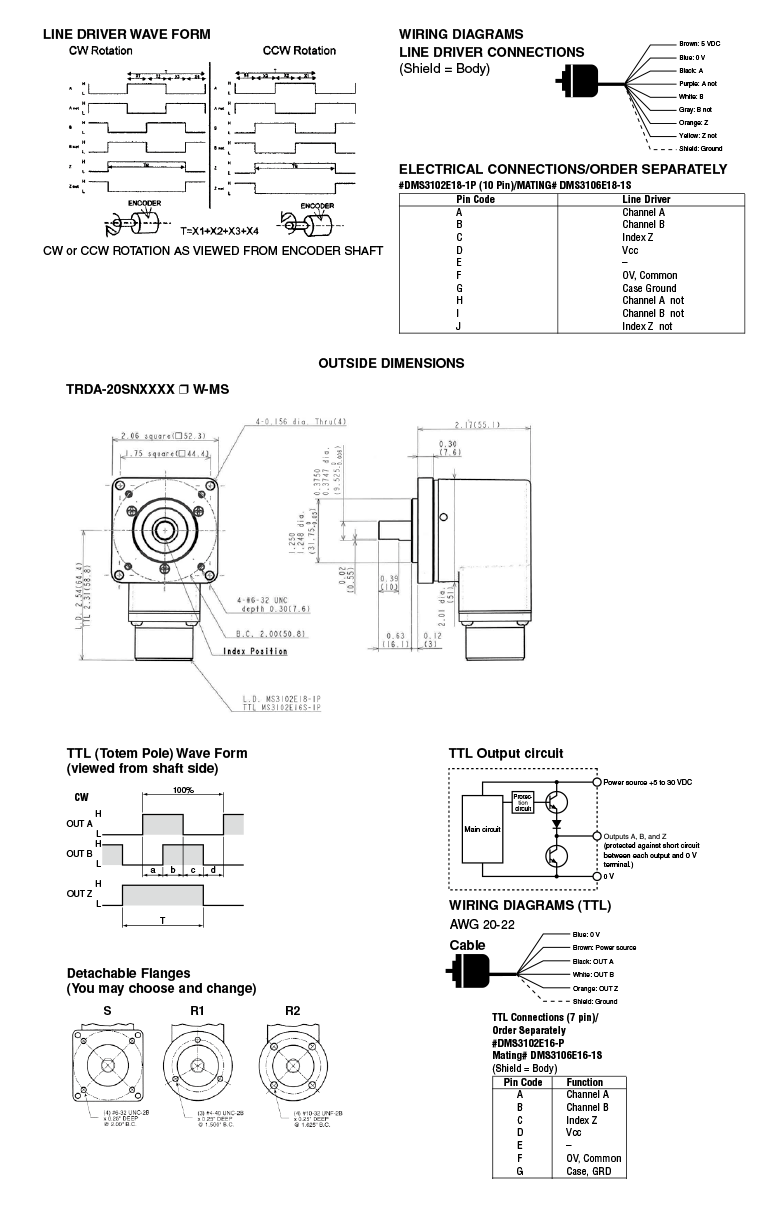

Drawings
