Series iPHD/Intelligent Pendant Hand-held with E-Stop (2-Contacts), 2-Enable, Jog+, Jog-, F1 SW's

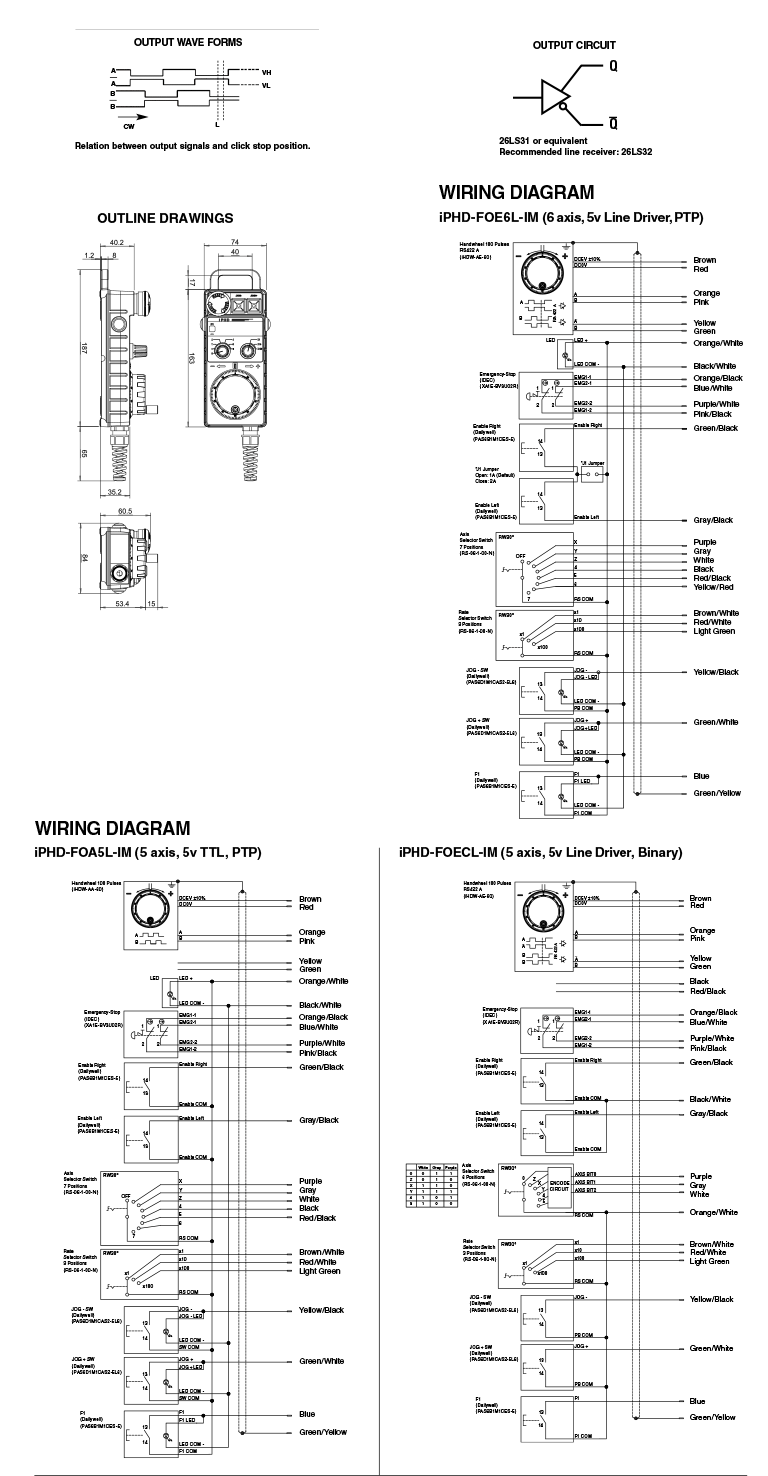

Specification Drawings Ordering Information Detailed Information[PDF]


US $980.00
S.R.P.
List Price














brand

FEATURES

  • Safety Level 3, conforms to EN418
  • 2-Contacts E-Stop SW, 2-Enable SW (R & L)
  • Jog+, Jog-, F1 function SW's
  • Multiplier x1, x10, x100 and X-Y-Z-4-5 axis selector SW's
  • 5v Linedriver and 5v TTL outputs (Point to point)
  • IP65, NAMA 4 enclosure protection
  • Std. 16 ft. extended spiral cable
  • Std. Magnets attached in rear
  • Amp CPC Size 17 & Amphenol Allow Size 24 connector kit
  • Euchner HBA-072 910 interchangeable model available in stock. (Binary code 0-Z-X-Y-4-5 axis)

 Specification
