SIZE 20 SERIES TRDA-RV TAL HOLLOW SHAFT ENCODER w/Commutation

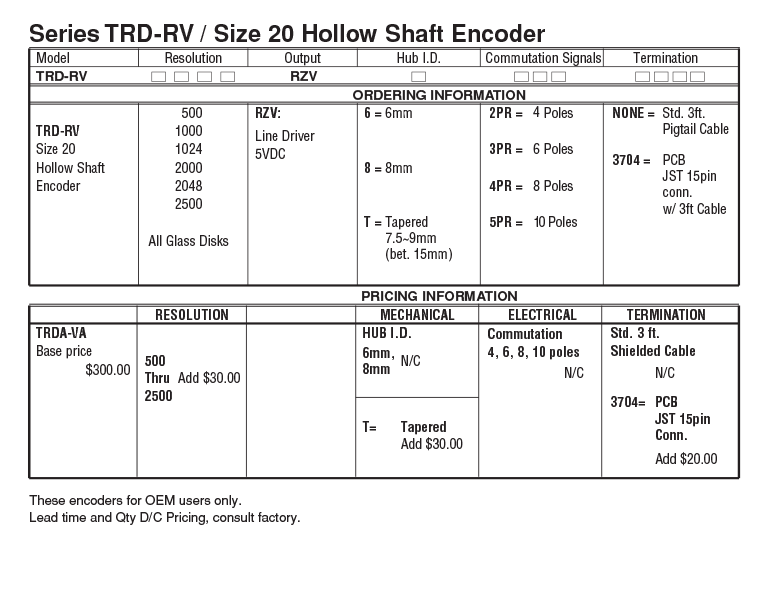

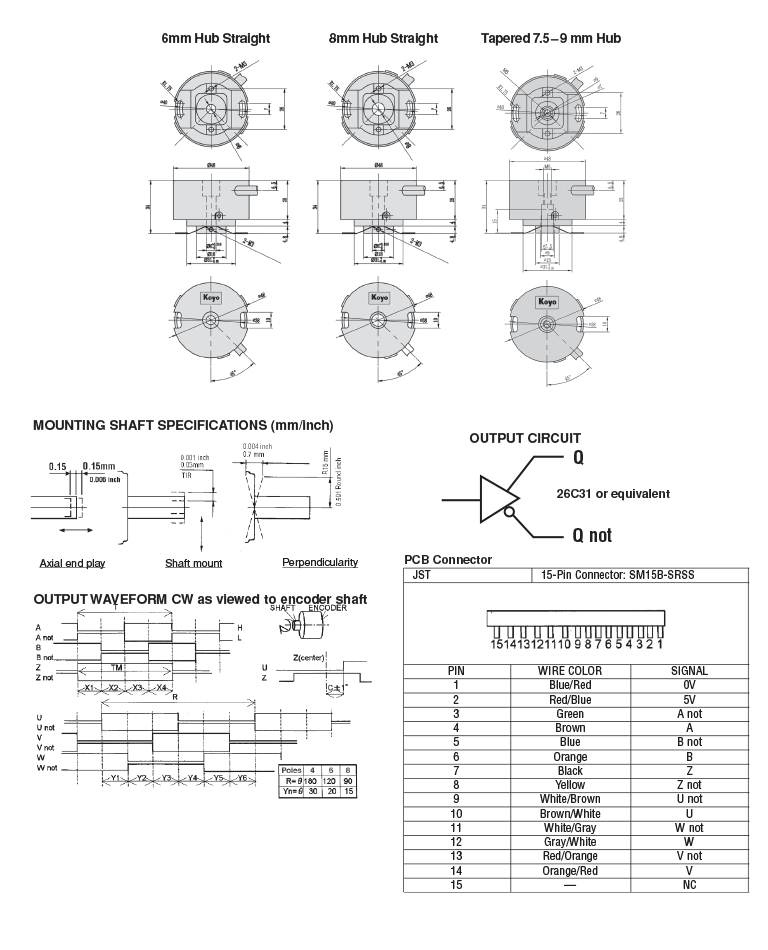

Specification Drawings Ordering Information Detailed Information[PDF]

S.R.P. List $350.00 up to 2500 ppr

FEATURES

  • 2.0" O.D., Thru-Hollow shaft designed with 1.3" Thickness
  • Hi-Res. up to 2500 P/R, 120 ℃ Operatating Temperature
  • Frequency Response 200 kHz
  • Hub I.D. 6mm, 8mm, Unique Tapered 7.5-9.0mm(bet.15mm)
  • Monting B.C. 1.57" (40mm) only
  • Commutation Signals: 2PR, 3PR, 4PR, 5PR
  • Applications: DC Brushless, Brush or Stepper Motors
  • Interchangeable with: Tamagawa OIH-48,
    EPC 260/15T Dynapar F18

 Specification
