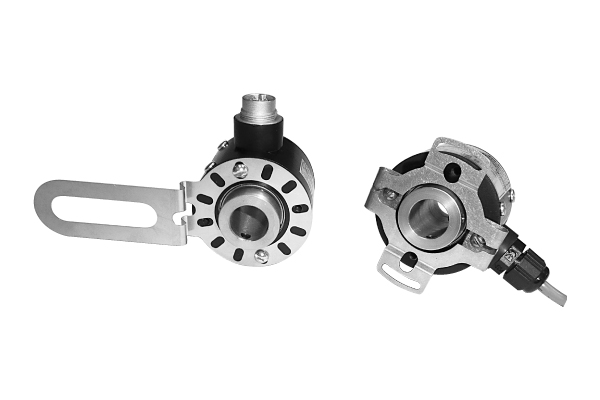

SIZE 20 SERIES HS20 INCREMENTAL HOLLOW SHAFT ENCODER / Thru-Hub
Specification Drawings Ordering Information Detailed Information[PDF]

Starting at US $430.00 List Price
(w/cable model - A ch. only)
Amphenol connector w/ L.D. model
US $485.00 List Price


brand, Made in USA

FEATURES

  • Size 20 Housing, heavy duty designed
  • Up to 5/8" or 16mm, Thru-hub design
  • Unbreakable code disk
  • Short circuit and ESD protected
  • Up to 1200 PPR
  • Attached cable or optional Amphenol connector
  • Super Linedriver 7272 compatible 5-26Vdc available
  • NEMA12/IP54 enclosure
 Specification

 Electrical
Supply Voltage 5-26 Vdc
Push-Pull, Open Collector, Line Driver
Current 50mA Max. No Load
100mA Max. (Line Driver)
Pulse Rate 0-30 kHz
Pulses per Revolution 1 to 1200
Output Circuit Single-ended
• 7273 open collector
(30VDC max, 50 mA max)
• 7272 Push-Pull
(50 mA max source or sink)
Differential Line Driver
• 7272 differential line driver
Output Wave Square wave outputs A, B and Z are
50/50 duty cycle nominal output Z
(index output) is approximately the
width of one cycle on outputs A or B.
• Pulse symmetry: 180 ±30%
• Pulse interval jitter: 30% max
• Quadrature: 90° ±30% max
• Phase jitter: 30% max

Mechanical
Shaft Bore 3/8", 1/2", 5/8", 16mm diameter
Maximum Speed 6000 RPM
Shaft Loading Radial: 30 lbs.
Axial: 20 lbs.
Materials Case: Aluminum, anodized
Shaft: 303 Stainless Steel
Weight 8.0 oz

 Environmental
Temperature Operating: 0 ~ 70°C
Storage: -10 ~ 85°C
Operation Humidity 35-85% without condensation
Vibration Max 10g (58 to 500 Hz)
Shock 50g (11 ms duration)
Enclosure IP-54/NEMA 12
