SIZE SR12 ABSOLUTE SHAFT ENCODER 8 BITS, 9BITS & 10BITS

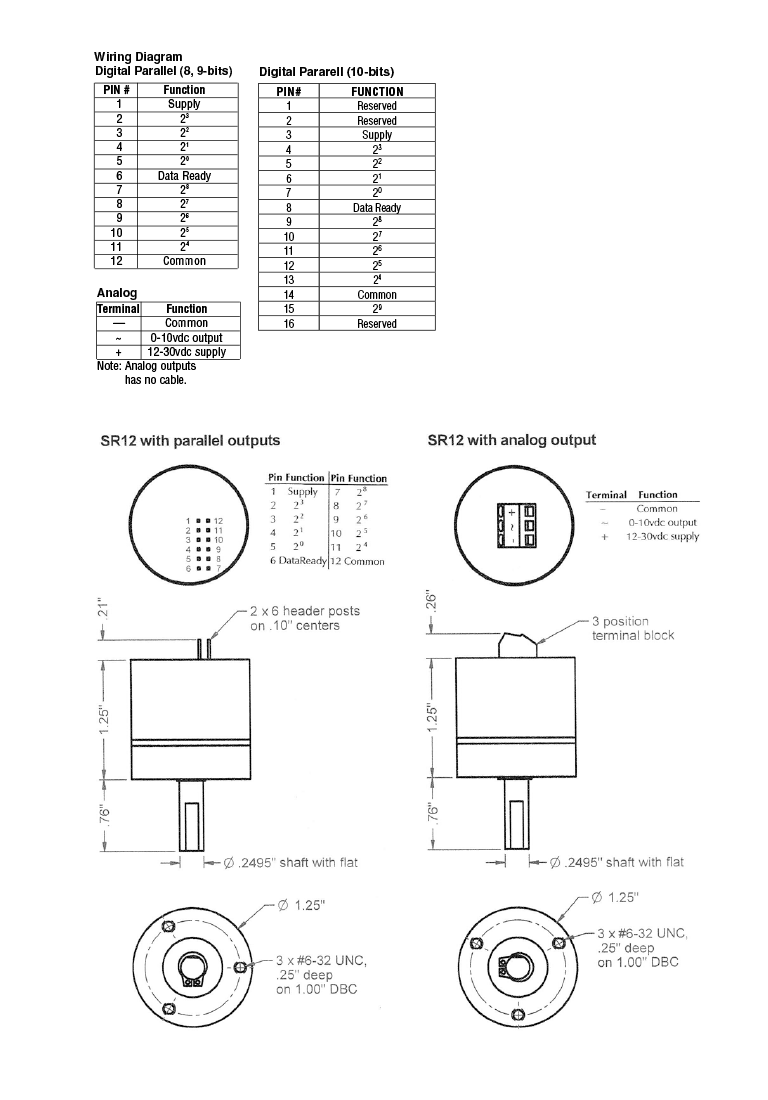

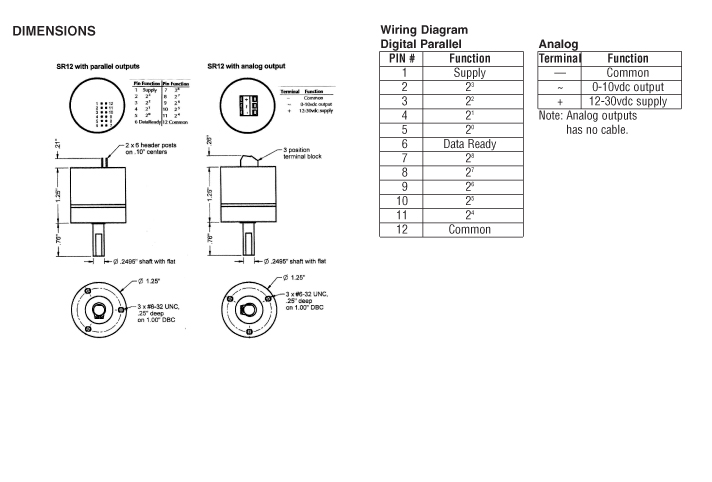

Specification Drawings Ordering Information Detailed Information[PDF]

Starting at $330.00 – 8 bits, $340.00 – 9 bits
$390.00 – 10 bits
Binary, Gray code & Analog outputs




brand, Made in USA

FEATURES

  • Size 12 dia, 1/4" Shaft Single-turn
  • 256 (8 bits), 512 (9 bits),1024 (10 bits) Resolution
  • Natural Binary, Parallel 5v outputs
    Analog 0-10v outputs, 12-30v input
  • Std. 3 ft. cable w/2x6 header conn. (Parallel outputs)
  • 3 pos. terminal block for Analog outputs
 Specification
