SIZE 20 SERIES R22 WHEELED INCREMENTAL SHAFT ENCODER
Specification Drawings Ordering Information Detailed Information[PDF]

Starting at US $450.00 S.R.P. List Price
(A ch only) with Std. 8" cir. wheels
(Urethane Tire)


brand, Made in USA

FEATURES

  • Generates pulses for accurate linear measurement.
  • Heavy Duty construction, NEMA12, IP-54.
  • Compact size vs. Size 30.
  • Precision 8" or 20cm circumference measuring wheels.
  • 16mm or M12 mating conn. with 10' cable.
  • "Anti-Jitter" and other material handling features.
  • ESD, Short Circuit, Reverse Voltage protection.
  • Various mounting hardware kits are available.
  • Programmable model available - see Model R22-P.

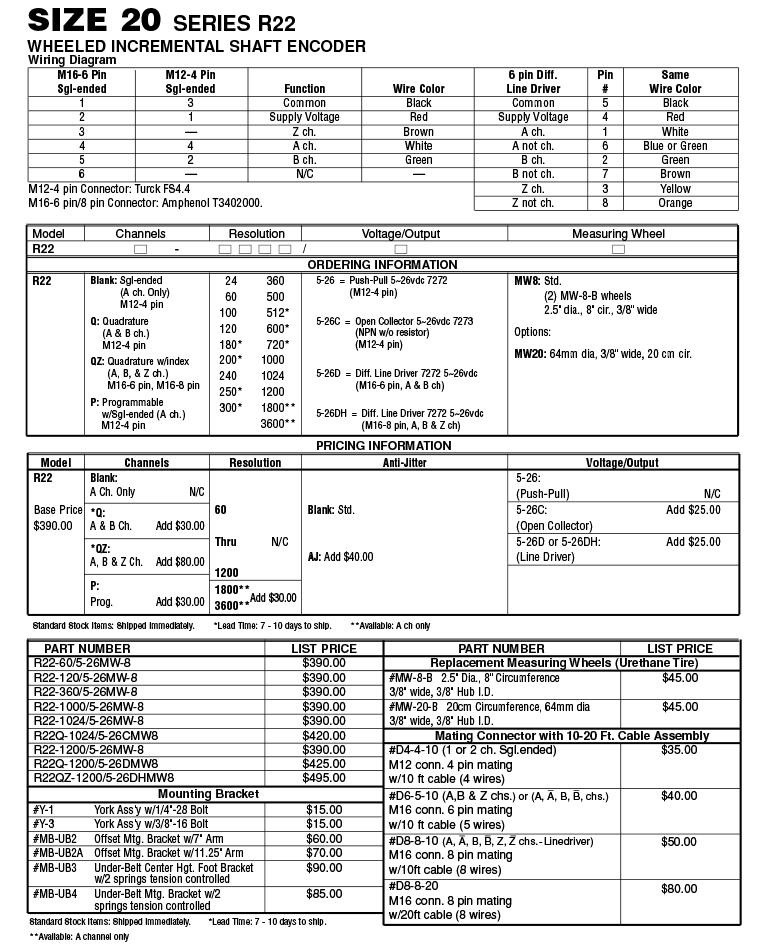

Ordering Information
