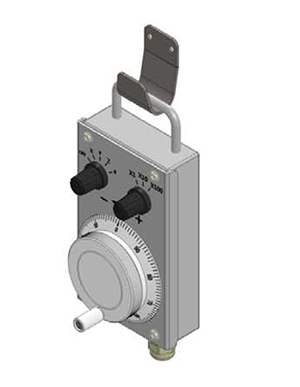

Series HPG Pendant Hand-held (for Brother CNC Tapping Center)
FEATURES
150mA max. (90mA typ.)
RS-422A (Line Driver)
100 Pulse / 100PPR
IP65(Front)
for Brother CNC Tapping Center
CNC-A00
CNC-B00
CNC-C00
HA-80002
Blue/Gray-Plastic Selector SW Knob-19 mm(3/4") dia with Bottom ferrule for Replacement
Price:
$10.00
Availablity:
In Stock
HA-80004
HPG-ROTARY SWITCH KNOB-21 mm(7/8") with No Ferrule. Blue/Gray
Price:
$15.00
Availablity:
In Stock
HPG-B-100-L-CL (Brother CNC Tapping Center-A,B,C00))
Pendant Hand-held (Rugged Metal Housing) for Brother CNC Tapping Center-A00,B00 &C00 equipped with Manual Pulse Generator 5v Linedriver, 100 ppr, 2-Rotary SW's -Axis, Multiplier comes with 3 meter spiral cable, Nanaboshi Pulg end. Internal PCB-Binary Code wiring.
Price:
$1,280.00
Availablity:
In Stock
Cable Assembly # 18C-C12 for HPG-B-100-L-CL on Brother CNC Tapping Center
Spiral Cable 3 meter extended.(10ft.) , with Miniature Plugs to the MPG, PCB's, ARGO Polyamide Synthetic Cable Gland Strain Relief-M12 x 1.5 with 12 mm long thread length #1546.12.1.06, Nanaboshi Plug Connector# NRW-2012-PM10. Direct Replacement of Brother CNC Tapping Machine #HPG-B-100-L-CL (2016-2022) by World Encoders, Inc. **In previous version of 2006-2015 of #HPG-B-100-L-CL it is not interchangeable 2- miniature plugs to PCB. *Please re-use the existing plug, then cut wire few inches away from plug. Also, new 2-miniature plugs are not necessary so, cut plug near plug. Then, each jumping wires connect using wire connector. Nanaboshi Plug is interchangeable.**
Price:
$490.00
Availablity:
In Stock
4-Rear Magnets for HPG pendant unit
4-Rear Magnet for HPG Pendant unit., Current 4-Ruber Bumpers remove and install 4-Magnets using same M3 X 7mm length screws. It is very easy to switch and convenient to hook at anywhere of Panel. Magnet Specs: 16 mm dia x 5.2 mm height, 6 kgf(14 lbs)-Force per magnet., Exact same height of current Rubber Bumpers. Also same screw hole of 3 mm Thread.
Price:
$35.00
Availablity:
In Stock
